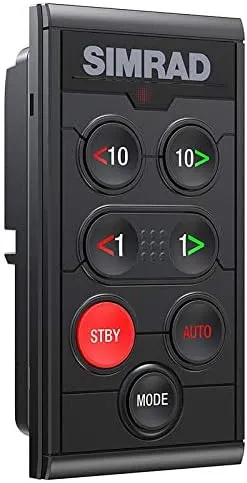

OP12 Autopilot Controller
The OP12 wired remote seamlessly integrates with Simrad autopilot systems to provide intuitive mode control, course adjustments, and power steering. Designed to complement the low-profile design of Simrad glass bridge instruments and displays, this remote can be combined with the IS42 Colour Instrument Display to create a standalone autopilot controller, or used as a dedicated autopilot keypad for GO, NSS and NSO evo2 multifunction displays.
Features:
- Intuitive operation
- Easy installation
- Combine with an IS42 display for full autopilot control
- Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers
- Use alongside NSS & NSO evo2 MFD's as an additional Autopilot Controller
- Low-profile glass helm design
- Low power consumption
- Certified NMEA 2000® connectivity
Specifications:
- Dimensions: 60 x 115 x 32mm (2.4" x 4.5" x 1.3")
- Weight: 0.12kg (0.3lbs)
- Power Consumption: 1.4 Watts
- Network Load: 3 LEN
- Color: Black
- Environmental Protection, Waterproof: Waterproof rating: IPx7
- Environmental Protection, Humidity: Up to 95% RH
- Compass Safe Distance: 300mm (1.0")
- Temperature Operating: -15 to 55°C (5°F to 131°F)
- Temperature Storage: -30 to 70 °C (-22 to 158 °F)
- Date First Available : January 17, 2019
- Manufacturer : Simrad
