- High quality component. Anti-corrosion connectors
- Built-in amplifier compensates insertion loss
- Sensitive meter for in-line use; pocket size and light weight
- With electronic buzzer. Easy operation, attenuation, audio tone and back light
- Powered by the receiver, nice tool for campers. PS: work great with directv hd swim signal; it uses 2X1.5v lithium batteries
Description:

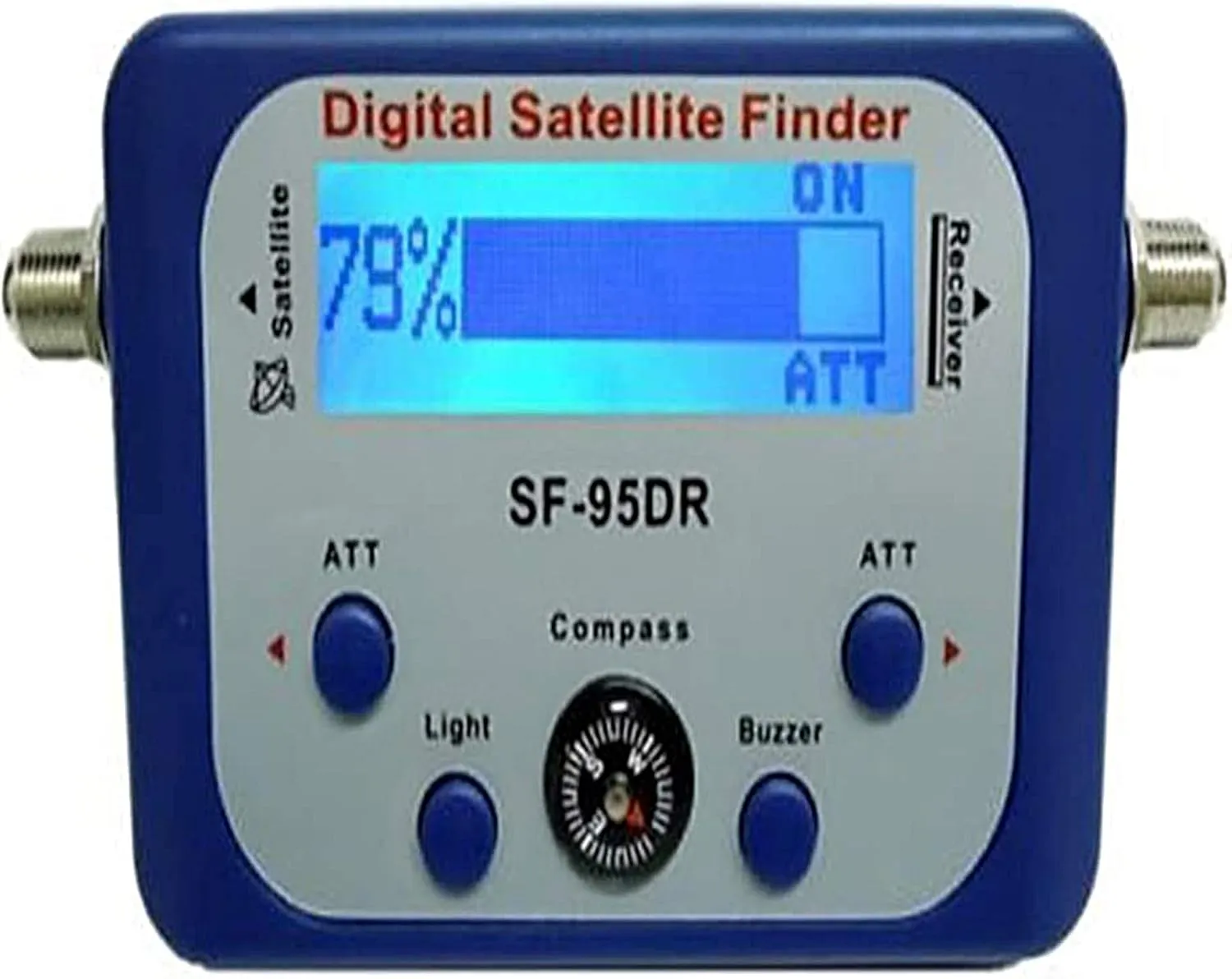

Very powerful Digital Satellite Signal Meter Finder which is able to find satellites in a very quick way about within 15 minutes if no accident. It is very lightweighted and compact,very convenient to use.Anti-corrosion connectors also make sure long time use and it is very worthy of trying.
Specification:
Input Frequency: 950-2150 MHz
Input Level Min: -40dBm
Input Level Max: -10dBm
Input Impedance: 75Ω, F connector
Output Impedance: 75Ω, F connector
Power Supply: DC 13/18 V
Operating Range (LNB gain): 52-60dB
Package Included:
1* Instructions
1* Digital Satellite Signal Meter Finder
1* Compass for free
Q &A:
1. how to install the satelite finder and detect the signal?
a. Connect a jump cable from LNB to the satellite finder's "Satellite" port. Connect the "Receiver" port, a DC 1318V power which comes from the satellite receiver
b. Make sure that the satellite finder is properly connected. Plug in the AC cord and turn on the satellite receiver
c. Set the dB to be 1 or 2 by ATT button, the signal LED will show from 15 to 30, then you can adjust the dish postition, when you hear the buzzer alert and the value of signal strength getting more and more, it means you get the statellite signal
d. Set the dB to be 3 or 4, adjust the dish again and again until the value of the signal strength is maximum. Then you can see the LOCK light in the satellite receiver, if the lock light is lighting it shows you find the desired satellite. Otherwise you need to adjust the dish again
